ZYB硬齒面渣油泵適用輸送各種潤滑性差，溫度不_過200℃，粘度大于1500cst的介質，特別對于輸送含有微細顆粒的介質有很強的適應性，如渣油、煤焦油、落地油、泡沫原料及含添加劑的食用油的輸送、加壓等。
 |
|
|
|

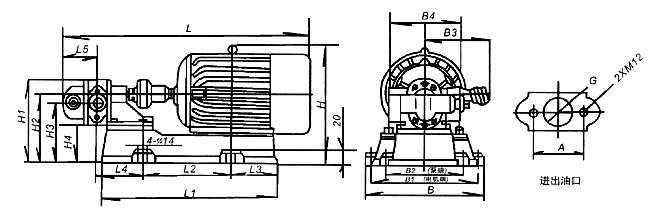

型號 |
L |
L 1 |
L 2 |
L 3 |
L 4 |
L 5 |
H |
H 1 |
H 2 |
H 3 |
H 4 |
B |
B 1 |
B 2 |
B 3 |
B 4 |
A |
G |
重量
|
|
ZYB-18.3 |
566 |
391 |
239 |
86 |
75 |
86 |
230 |
176 |
130 |
109 |
40 |
259 |
225 |
190 |
155 |
192 |
52 |
G 3 / 4 " |
62.15 |
|
ZYB-33.3 |
618 |
416 |
256 |
86 |
82 |
93 |
285 |
186 |
140 |
119 |
50 |
279 |
245 |
190 |
180 |
192 |
52 |
G 3 / 4 " |
66.8 |
|
ZYB-55 |
595 |
391 |
239 |
86 |
89.5 |
100.5 |
230 |
176 |
130 |
109 |
40 |
259 |
225 |
190 |
155 |
192 |
70 |
G1" |
64.15 |
|
ZYB-83.3 |
652 |
416 |
256 |
94 |
102 |
113 |
285 |
186 |
140 |
119 |
50 |
279 |
245 |
190 |
180 |
192 |
78 |
G1 1 / 2 " |
70.15 |

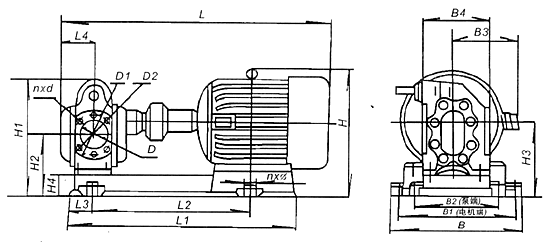

ZYB-200～ZYB-960外型、ZYB 渣油泵 安裝尺寸安裝尺寸及重量
 |
|
|
|
型號 |
L |
L 1 |
L 2 |
L 3 |
L 4 |
n×φ |
H |
H 1 |
H 2 |
H 3 |
H 4 |
B |
B 1 |
B 2 |
B 3 |
B 4 |
D |
D 1 |
D 2 |
n×d |
重量
|
|
ZYB-200 |
709 |
577 |
419 |
58 |
90 |
4×φ16 |
355 |
314 |
168 |
202 |
50 |
326 |
290 |
240 |
190 |
214 |
φ50 |
φ110 |
φ140 |
4×M12 |
135 |
|
ZYB-300 |
883 |
715 |
502 |
80 |
124 |
4×φ22 |
423 |
378 |
198 |
240 |
70 |
390 |
340 |
280 |
210 |
228 |
φ70 |
φ123 |
φ155 |
6×M14 |
173 |
|
ZYB-483.3 |
972 |
795 |
565 |
890 |
124 |
4×φ22 |
465 |
378 |
198 |
240 |
70 |
450 |
400 |
290 |
255 |
228 |
φ70 |
φ123 |
φ155 |
6×M14 |
213 |
|
ZYB-633 |
1074 |
901 |
629 |
100 |
145 |
4×φ22 |
500 |
455 |
258 |
275 |
70 |
450 |
400 |
285 |
255 |
280 |
φ100 |
φ158 |
φ190 |
8×M14 |
274.5 |
|
ZYB-960 |
1099 |
900 |
635 |
100 |
145 |
4×φ22 |
525 |
455 |
283 |
275 |
70 |
470 |
420 |
285 |
285 |
280 |
φ100 |
φ158 |
φ190 |
8×M14 |
304.5 |
ZYB1.5/2.0-7.5/2.0 型泵外型、 ZYB 渣油泵 安裝尺寸 安裝尺寸
 |
|
|
|
型號 |
L |
L 1 |
L 2 |
L 3 |
B 1 |
B 2 |
B 3 |
H |
H 1 |
H 2 |
G |
φD |
4-φd |
|
ZYB-1.5/2.0 |
193.5 |
45 |
75 |
138.5 |
114 |
138 |
95 |
132 |
67.5 |
87 |
G3/4" |
18 |
10 |
|
ZYB-2.1/2.0 |
198.5 |
48 |
78 |
142.5 |
124 |
154 |
110 |
164.5 |
86 |
112 |
G1" |
18 |
10 |
|
ZYB-3/2.0 |
198.5 |
48 |
78 |
142.5 |
124 |
154 |
110 |
164.5 |
86 |
112 |
G1" |
18 |
10 |
|
ZYB-4.2/2.0 |
220 |
58 |
88 |
155 |
160 |
190 |
140 |
205 |
107.5 |
140 |
G1 1 / 4 " |
28 |
12 |
|
ZYB-7.5/2.0 |
239 |
65 |
98 |
164.5 |
160 |
190 |
140 |
205 |
107.5 |
140 |
G1 1 / 2 " |
28 |
12 |
|
ZYB-12/2.0 |
360 |
106 |
136 |
257 |
190 |
220 |
210 |
256 |
136 |
178 |
G2" |
32 |
14 |

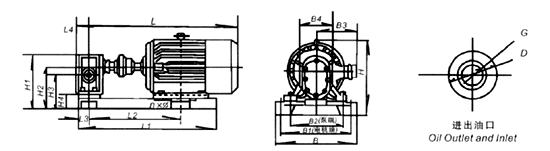

ZYB-1.5/2.0～ZYB-12/3.5外型、ZYB 渣油泵 安裝尺寸安裝尺寸重量
|
|
|
型號 |
L |
L 1 |
L 2 |
L 3 |
L 4 |
H |
H 1 |
H 2 |
H 3 |
H 4 |
B |
B 1 |
B 2 |
B 3 |
B 4 |
G |
D |
n×φ |
重量
|
|
ZYB-1.5/2.0 |
582 |
486 |
339 |
47.5 |
55 |
290 |
190 |
145 |
125.5 |
58 |
293 |
257 |
190 |
180 |
95 |
G 3 / 4 " |
φ36 |
4×φ18 |
56 |
|
ZYB-2.1/2.0 |
586 |
493 |
344 |
49 |
56 |
302 |
210 |
157 |
131 |
45 |
293 |
257 |
206 |
180 |
110 |
G1" |
φ50 |
4×φ18 |
63.5 |
|
ZYB-3/2.0 |
605 |
499 |
349 |
49 |
56 |
310 |
210 |
157 |
131 |
45 |
333 |
297 |
206 |
190 |
110 |
G1" |
φ50 |
4×φ18 |
77.5 |
|
ZYB-4.2/2.0 |
720 |
585 |
420 |
54 |
65 |
373 |
255 |
190 |
157.5 |
50 |
368 |
332 |
242 |
210 |
140 |
G1 1 / 4 " |
φ70 |
4×φ18 |
121 |
|
ZYB-7.5/2.0 |
780 |
637 |
448 |
60 |
75 |
378 |
260 |
195 |
162.5 |
55 |
368 |
332 |
242 |
210 |
140 |
G1 1 / 2 " |
φ70 |
4×φ18 |
136 |
|
ZYB-12/2.0 |
1020 |
862 |
616 |
78 |
103 |
468 |
321 |
243 |
201 |
65 |
416 |
380 |
272 |
255 |
210 |
G2" |
φ95 |
4×φ18 |
173 |
